Titanium tensile plate mesh for electrolytic oxygen and hydrogen production is an important material, widely used in electrolytic cells, especially on the anode side for oxygen generation. The following is the detailed information about this kind of material:

Product characteristics

Material: Pure titanium (such as TA1, TA2, etc.) is usually used, with a titanium content of ≥99.6%, featuring excellent corrosion resistance and high strength.

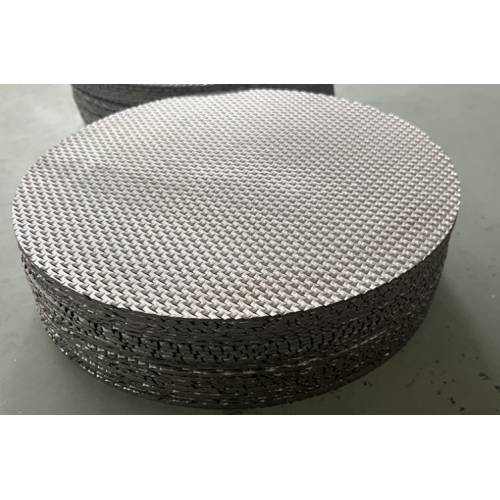

Thickness: Common thicknesses include 0.25mm, 0.3mm, 0.4mm, 0.8mm, etc. The maximum width can reach 1.5 meters, and the length can be customized. The company provides free machine light cutting service.

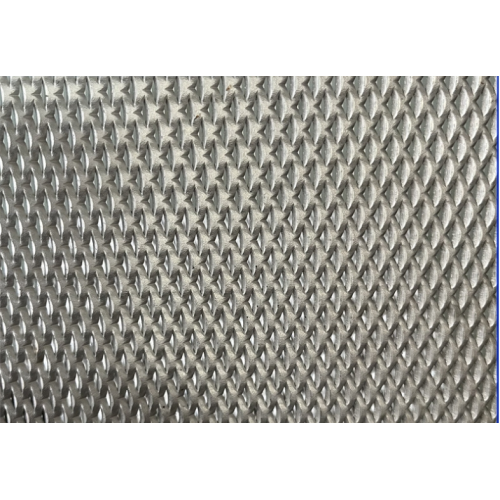

Hole type: Mostly rhombic holes. Common hole diameter specifications include 0.4x0.8mm, 0.5x1mm, 0.6x1.2mm, etc.Support customization of other apertures

Processing technology: The stretching process is adopted to form a regular rhombic hole structure, which has a large opening rate and surface area.

Advantage

Corrosion resistance: Titanium material has excellent corrosion resistance in alkaline electrolytes and is suitable for the harsh environment of electrolytic oxygen and hydrogen production.

High electrical conductivity: The titanium stretched plate mesh has excellent electrical conductivity and can effectively reduce the resistance of the electrolytic cell.

High mechanical strength: Titanium tensioned plate mesh features high strength and excellent mechanical properties, capable of withstanding the pressure inside the electrolytic cell.

Customizability: Plate meshes of different thicknesses, hole diameters and sizes can be customized according to customer requirements

Application field

Electrolytic oxygen and hydrogen production: As a key material on the anode side of the electrolytic cell, it is used for the generation of oxygen, replacing the traditional carbon-based gas diffusion layer.

Chemical filtration: It is used for screening and filtration in acidic and alkaline environments.

Seawater desalination: As a filter screen, it is used in seawater desalination equipment.

Other industrial applications: such as high-temperature electric furnace heat treatment support nets, petroleum filter screens, etc.

Precautions

Surface treatment: To further enhance corrosion resistance and electrical conductivity, titanium tensioned plate mesh can undergo platinum or gold plating treatment.

Installation and adjustment: When used in the electrolytic cell, it is necessary to ensure that the titanium stretched plate mesh is firmly fixed to the electrode rods and make appropriate adjustments according to the design of the electrolytic cell.

If you have specific needs or customization requirements, please feel free to contact us. We have professional engineers to provide you with one-stop customization services
