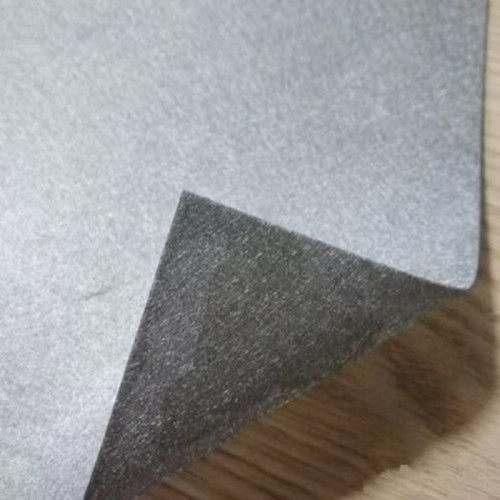

Product characteristics

Material: nickel-titanium, stainless steel, aluminum

Porosity: 30%-80%, with specific values varying due to thickness and process.

Fiber diameter: 30-60 microns.

Thickness: Available in various specifications such as 0.25mm, 0.3mm, 0.4mm, and 0.8mm.

Size: Customizable, with the maximum size reaching 1200mm×1500mm.

Structure: Three-dimensional reticular porous structure with uniform pore size distribution.

Product advantages

High porosity and air permeability: High porosity, good air permeability, low pressure loss and large flow rate.

Corrosion resistance: Resistant to corrosion by acids, alkalis, organic solvents and chemicals.

High-temperature resistance: It can be used for a long time at 816℃.

Good mechanical properties: resistant to impact and alternating loads, with stable shape.

Strong processability: It can be folded and welded, and can be made into disc-shaped, candle-shaped, wave-shaped and other shapes.

Long service life: Stable performance and long service life

Product packaging: moisture-proof paper + bubble wrap + wooden box, can be customized according to customer requirements, cardboard box (Logo can be customized on the surface of the cardboard box), wooden box. Or other packaging. Please contact us and let us ask you to provide professional service Email:Enquiry@electrolyserstore.com

It is mainly used in electrolytic cells as a flow field or diffusion material, especially on the oxygen (anode) side. Due to the immediate oxidation of carbon to CO2 (if the medium is acidic) or carbonate ions (if the medium is alkaline) during the electrolytic reaction, the hardware of the electrolyzer cannot use a carbon-based gas diffusion layer (GDL) at the oxygen evolution electrode. Therefore, titanium fiber felt becomes an ideal choice for the diffusion medium. It also provides electrical contact between the anode catalyst layer and the bipolar plate or the anode side collector component. Our titanium fiber felt is made of small-diameter titanium fibers, which are compressed into a flat shape and annealed (i.e., sintered), ensuring a smooth and flat surface suitable for use in electrolytic cells. Although most industrial applications operate electrolytic cells in anode-powered mode, this product is also an ideal diffusion medium for researchers conducting research on cathode-powered electrolytic cells. Although most industrial applications operate electrolytic cells in anode-powered mode and this product provides an excellent diffusion medium for oxygen evolution electrodes, it can also serve as an ideal diffusion medium for researchers conducting research on cathode-powered electrolytic cells. For combined fuel cell or electrolytic cell or regenerative electrochemical device systems, titanium fiber felt can be used as a diffusion medium at the anode or cathode. Regardless of the nature of the reactants, specific types of batteries such as electrochemical oxygen concentrators, electrochemical inert substances, and REDOX flow batteries can also benefit from this product as a diffusion medium.
