1. System Overview

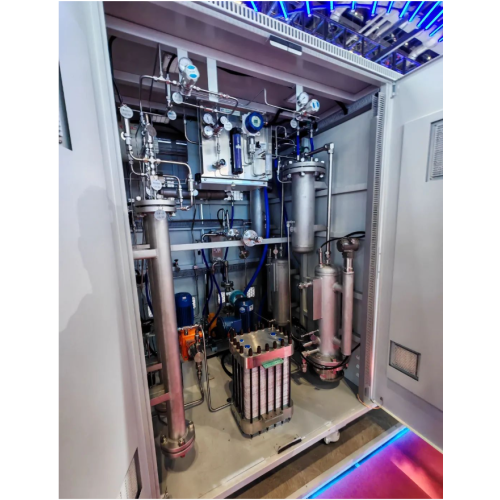

The 30kW AEM (anion Exchange membrane) hydrogen production system is an efficient, flexible and cost-effective green hydrogen production solution. This system utilizes AEM technology and combines the high performance of proton exchange membrane (PEM) electrolysis with the low-cost advantage of alkaline electrolysis. The AEM hydrogen production system generates high-purity hydrogen through electrolysis of water and is suitable for a variety of application scenarios, including transportation, industry, and distributed energy

2. Technical Features

High efficiency: The AEM electrolysis system features high energy efficiency, with a standard DC power consumption of 4.8 kWh/Nm³.

No precious metal catalysts: The use of non-precious metal catalysts reduces the system cost.

High-purity hydrogen: The hydrogen purity can reach 99.9% or higher (a dryer can be optionally equipped).

Operational flexibility: The system features a fast response time (less than 3 seconds) and is capable of adapting to the intermittency of renewable energy.

Compact design: The system is compactly designed, facilitating installation and maintenance.

3. System Specifications

Hydrogen production: A 30kW system can generate approximately 6 Nm³/h of hydrogen.

Operating pressure: Up to 35 bar at most.

Power consumption: 2.4kW (initial operation).

Dimensions: W: 482mm × D: 635mm × H: 266mm.

4. Application Scenarios

Transportation sector: Provide a stable hydrogen supply for hydrogen fuel cell vehicles.

Industrial application: It is suitable for industries such as fertilizers, metallurgy and petrochemicals, serving as an important raw material and reducing agent.

Distributed energy: Supports small-scale distributed energy systems to meet on-site hydrogen production demands.

5. Market prospects

The AEM hydrogen production system is regarded as the mainstream technical route for green hydrogen production in the future due to its high efficiency, low cost and environmental friendliness. With the continuous advancement of technology and the reduction of costs, the AEM hydrogen production system is expected to be widely applied worldwide

We can provide a complete solution for 30KW electrolytic cells. If you have any needs, please contact us directly：Email:Enquiry@electrolyserstore.com
